ASHFORD SPINNING WHEELS

*Wheels arrive as kits - assembly required*

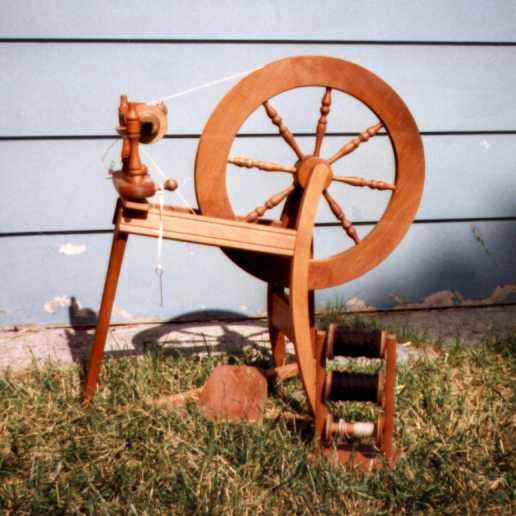

Traditional

Single drive or double drive.  Includes 4 bobbins and a lazy kate (holds 3 bobbins).  Single Treadle. Available unfinished or lacquered.  Assembly required.

Wheel Diameter:  56 cm (22")
Orifice:  1 cm (3/8")
Bobbin Capacity:  100gm (3-4 oz)
Single Drive Ratios:  6.5, 12.5, & 17.5
Double Drive Ratios:  7.5, 10 (14 bobbin lead)
Weight:  8 kg (17 ½ lbs)

S01A -- Single Drive (unfinished)  $829.00

S01B -- Single Drive (lacquered)  $999.00

S01C -- Double Drive (unfinished)  $879.00

S01D -- Double Drive (lacquered)  $1,039.00

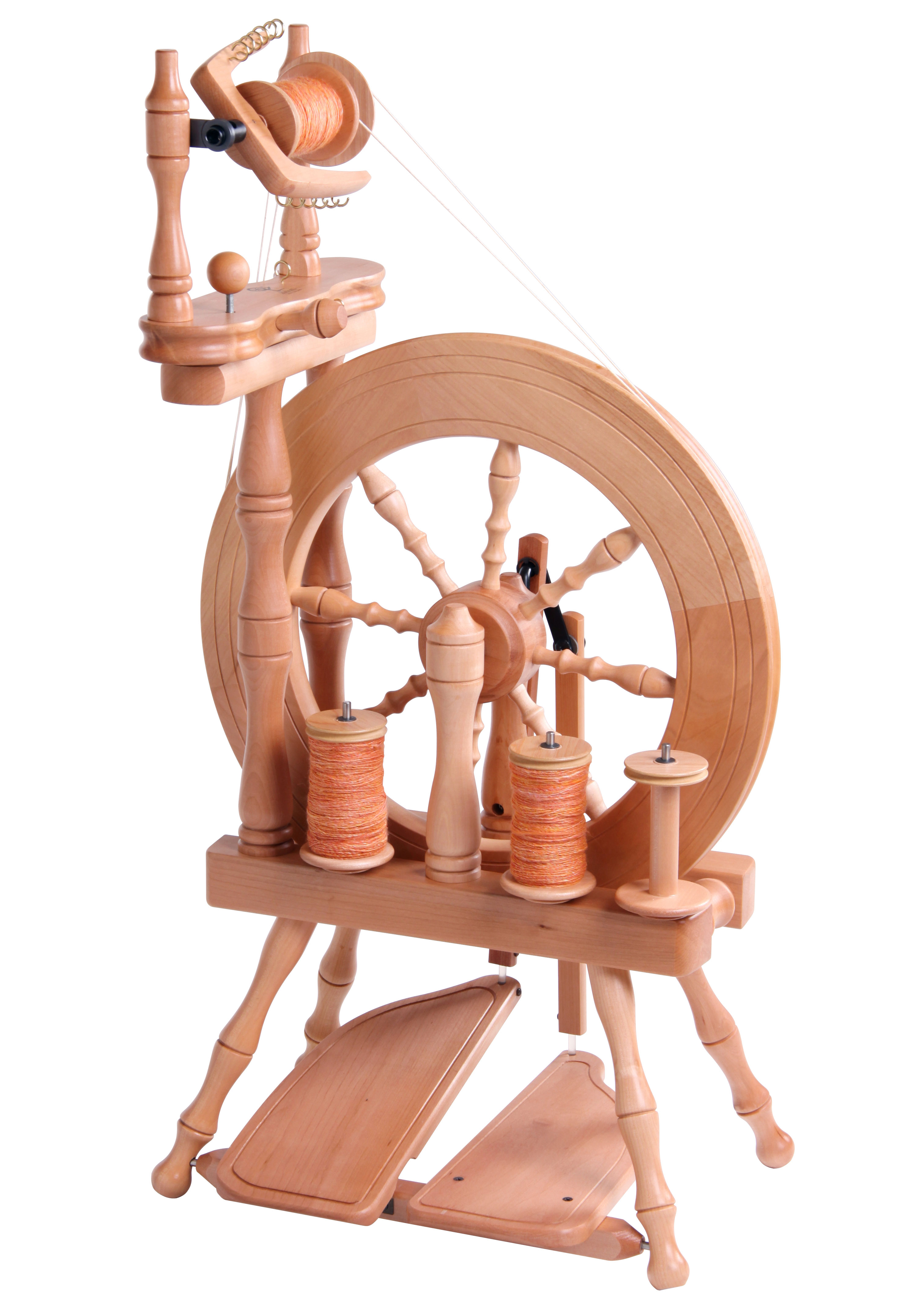

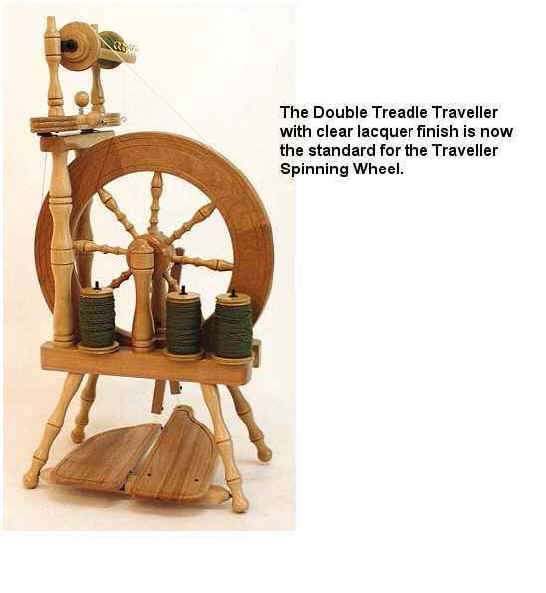

Traveller 3 - Double Treadle

Classic Castle Wheel with a centralized single drive sliding hook flyer, 3 large capacity bobbins and built-in lazy kate. Double Treadle. Available unfinished or lacquered.  Compact and easy to carry.  Four speed single drive flyer with stretchy polycord driveband eliminates any flyer vibration and makes changing ratios a breeze. Sliding hook flyer with three 90mm large capacity bobbins as standard. Assembly required.

Wheel Diameter:  46 cm (18")
Orifice Height: 80.5cm (31¾")
Bobbin :  130gm (4-5 oz)
Ratios:  5, 7, 9 and 14:1
Weight:  16.5 lbs

S02E -- Traveller 3 (unfinished)  $859.00

S02F -- Traveller 3 (lacquered)  $1,019.00

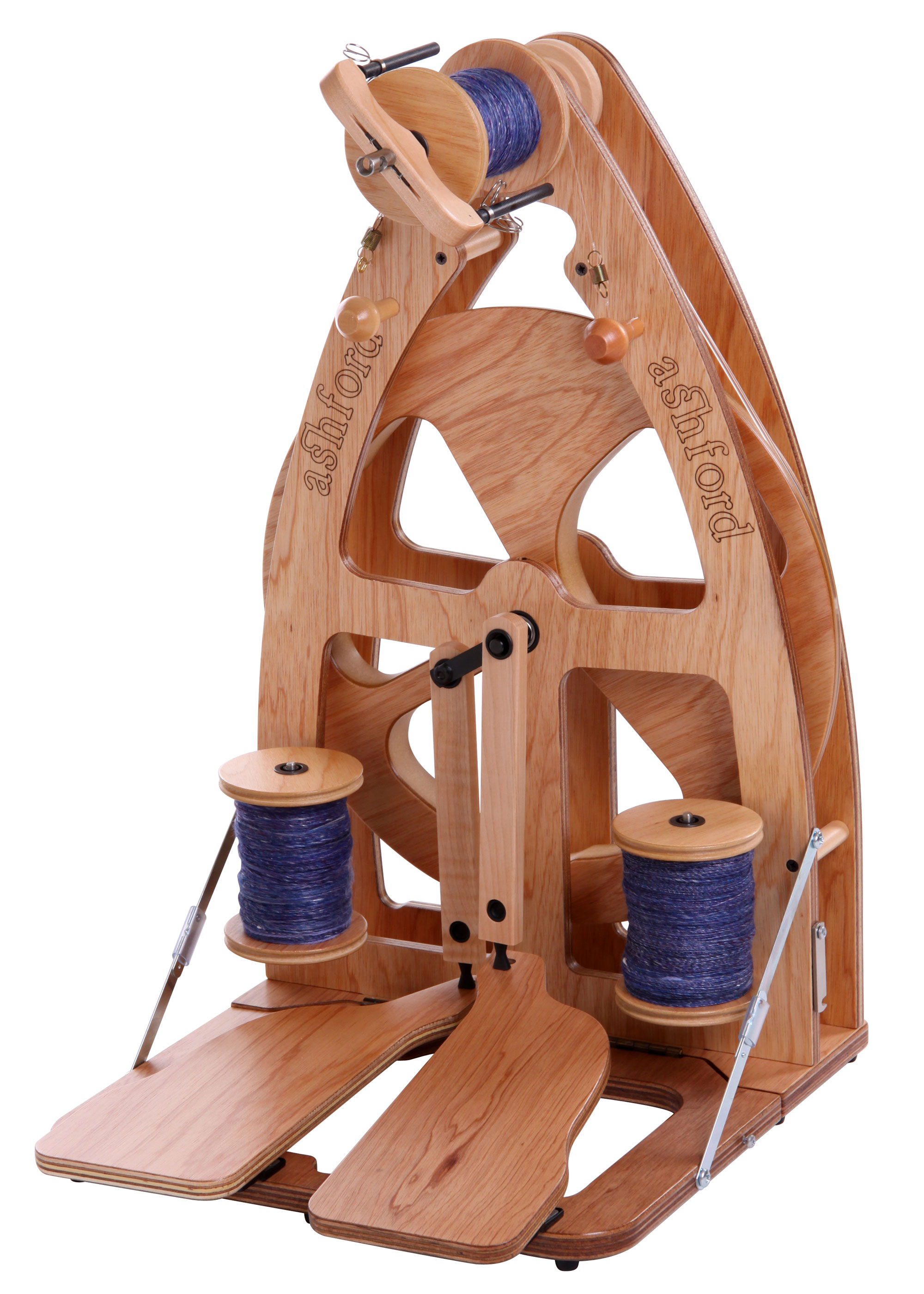

Joy 2

Single drive with ball bearings.  Includes 3 bobbins.  Includes sliding hook flyer.  Single or Double Treadle. Lacquered and assembled.  The flyer and bobbins fit into the frame and the treadle board folds flat.

Wheel Diameter:  40 cm (15 ¾")
Orifice:  1 cm (3/8")
Bobbin Capacity:  100gm (3-4 oz)
Ratios:  6, 8, 11, & 14
Weight:  5 kg (11 lbs)

S03D -- Single Treadle Joy 2+ Carry Bag  $1,039.00

S03E -- Double Treadle Joy 2 + Carry Bag  $1,049.00

S03F -- Sliding Hook Flyer for Joy 2 Wheel (with bobbin)    $155.90

S03G -- Joy 2Freedom Flyer (Jumbo, with bobbin)   $167.90

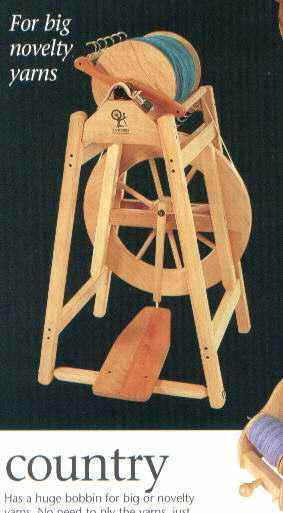

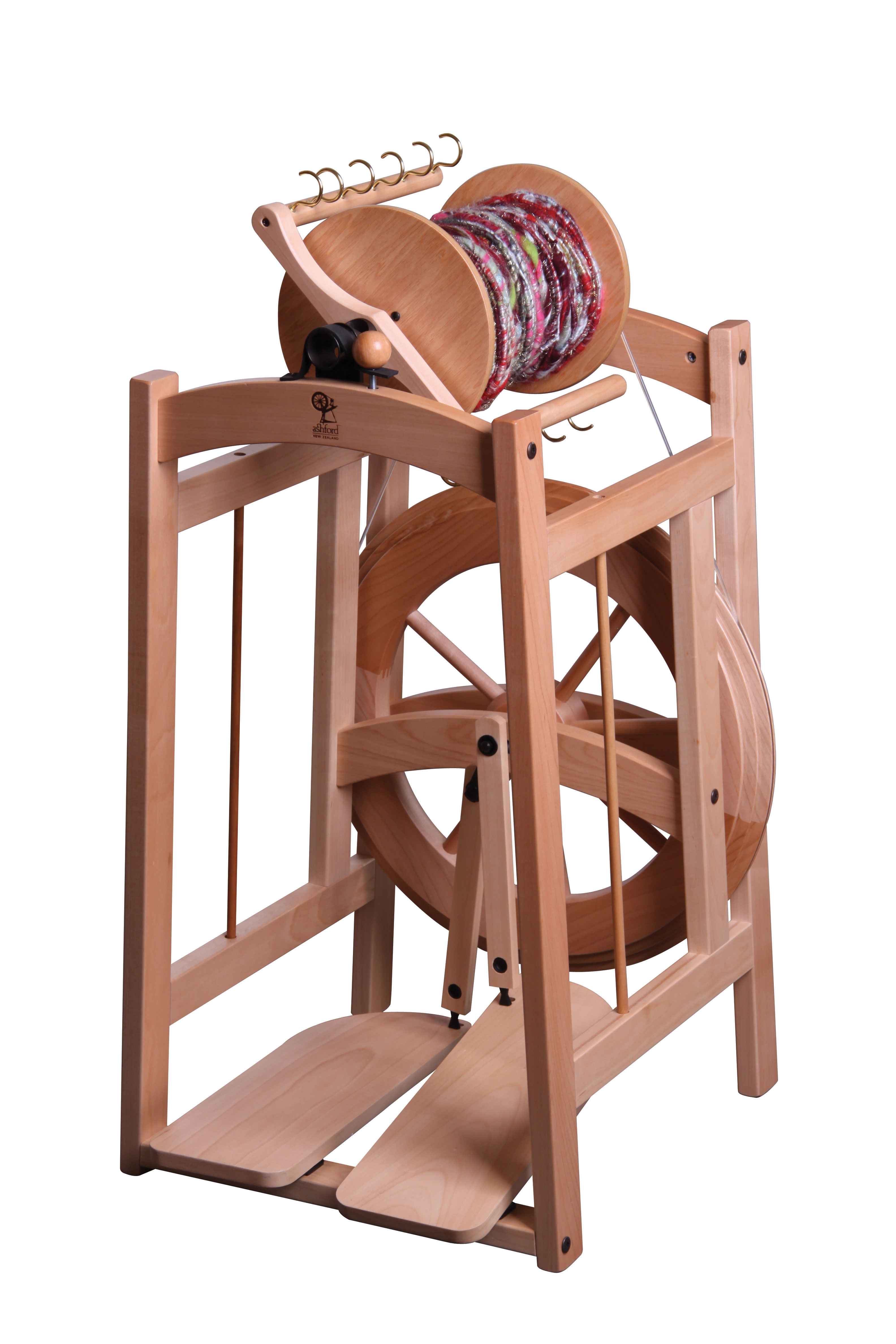

Country Spinner 2

Single drive.  Includes 2 lb bobbin.  Double treadle. Large bobbin holds 1 kg (2.2 lbs) of thick yarn.  Leather flyer brake.  Single ratio ideal for spinning big yarns.  Assembly required.

Wheel Diameter:  46 cm (18")
Orifice:  2.3 cm (7/8")
Bobbin Capacity:  900gm - 1 kg (up to 2.2 lbs)
Ratios:  4
Weight:  6.6 kg (14 ½ lbs)

Unfinished S05A -- $939.00

Lacquered S05B -- $1,149.00

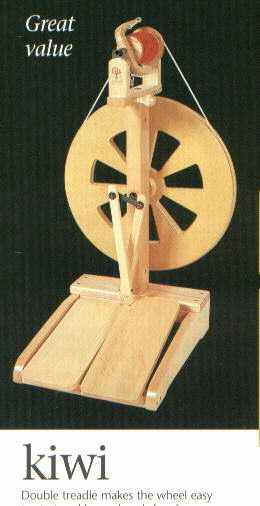

Kiwi 3

Single drive.  Includes sliding hook flyer, 3 bobbins, and a built-in lazy kate (holds 2 bobbins).  Double treadle. Available unfinished or lacquered.  Compact upright wheel made from solid Medium Density Fiberboard (MDF) with a New Zealand Silver Beech frame.   Scotch tension for precise tension adjustment. Assembly required.

Wheel Diameter:  45 cm (17 ½")
Orifice:  1 cm (3/8")
Bobbin Capacity:  130 gm (4-5 oz)
Ratios:  5.5, 7.5, and 9.5
Weight:  5.5 kg (12 lbs)

S06A -- Unfinished  $629.00

S06B -- Lacquered  $799.00

S06K -- Unfinished, with Carry bag $809.00

S06L -- Lacquered, with Carry bag $979.00

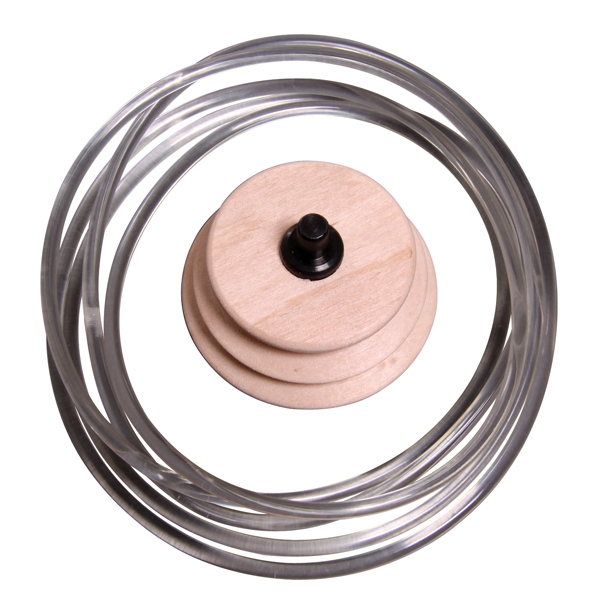

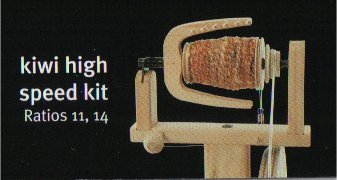

S06C -- Kiwi High Speed Kit  $48.00

Spin ultra fine yarns.  Kit contains a high speed whorl and polycord drive belt.

Ratios:  11 & 14

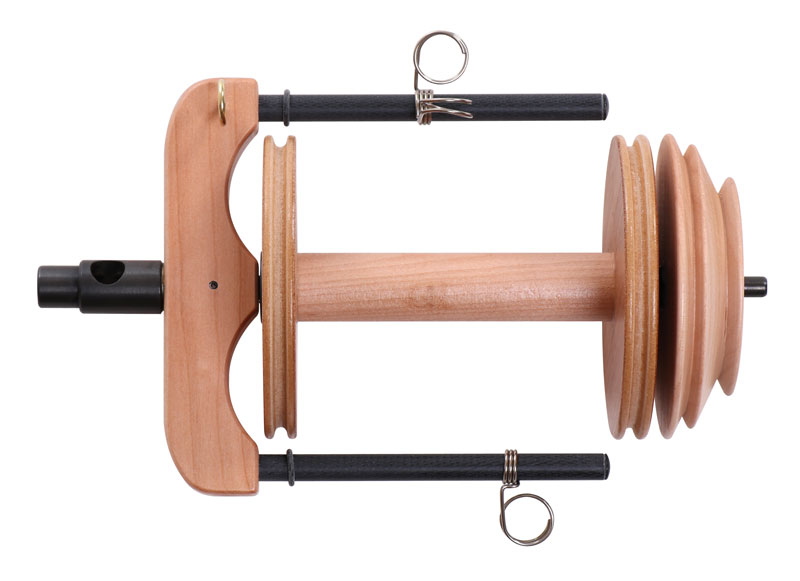

S06 G -- Kiwi Sliding Hook Flyer, with bobbin
                                    Unfinished  $150.00
                                    Lacquered  $175.00

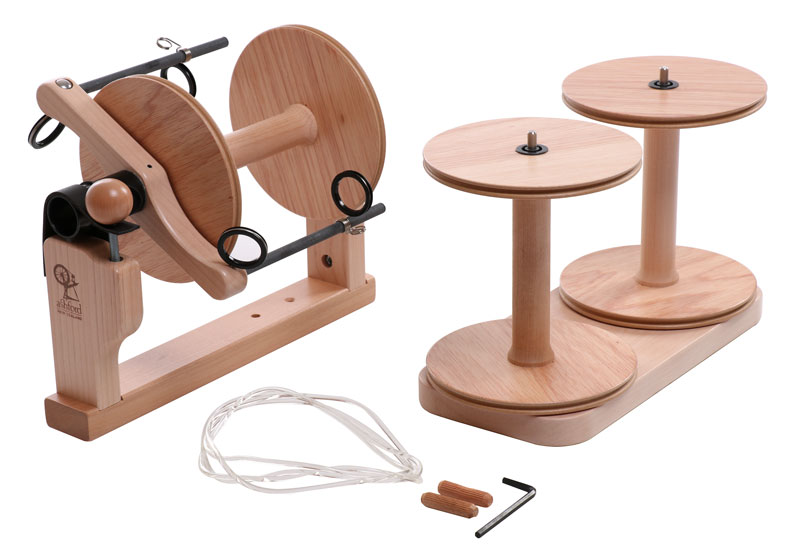

S06H -- Kiwi Super Flyer Kit. With 3 Kiwi Super Flyer bobbins and lazy kate.
                                    Unfinished  $380.00
                                    Lacquered  $465.00

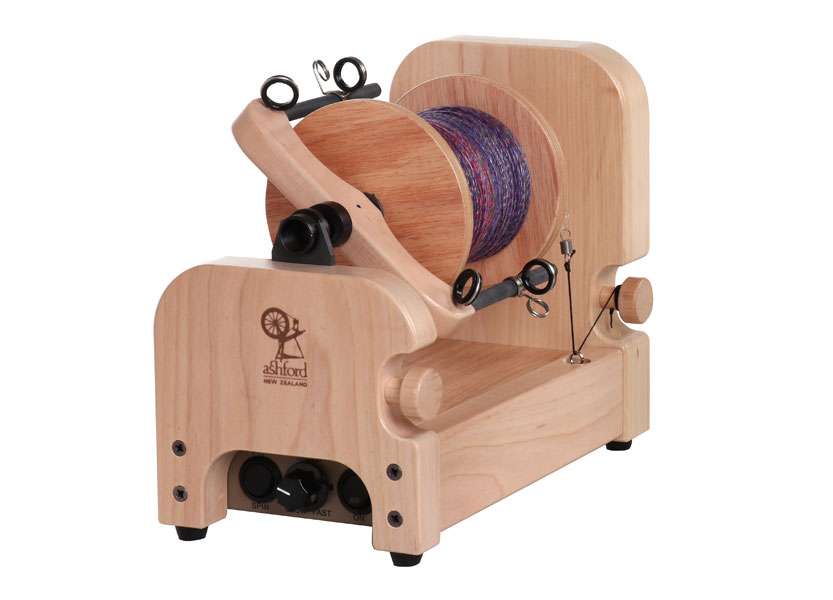

Electric Spinner 3

This is the smallest, lightest, and most versatile electronic spinner. Change bobbins with the new snap-in flyer bearing. The e-Spinner 3 has a quiet and powerful 12-volt DC 2.0 amp 70 watt motor. This gives the e-Spinner variable speed from 0-1800 rpm. Light weight at 4.4 pounds so you can use it on the go! Includes a padded carrybag with shoulder straps, three jumbo bobbins, a tensioned lazy kate, one bottle of oil, and the fabulous on/off foot controller.

S07A -- Assembled and Lacquered  $899.00

Electric Spinner 3 Super Jumbo

Includes carry-bag and foot switch.

S07B -- Assembled and Lacquered  $1,079.00

e-spinner 3 Bobbin Winder/Quill Attachment

ESPBWQ -- $68.50
